Spinnerblast Internal Pipe Blaster
The Spinnerblast tool cleans the interior of pipes up to 40’ long and ranging in size from 8” (203 mm) to 36” (915 mm) I.D. The tool connects to most abrasive blasting machines in place of a standard nozzle. As the tool passes through the length of the pipe being cleaned, abrasive is ejected by two special nozzles
mounted on a rotating head. Optimal rotating speed is controlled by the braking system. An adjustable centering carriage supports the tool through the pipe internal. The chart below shows the recommended centering legs, nozzle sizes and compressor capacities for different pipe diameters.
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Product description
| Pipediameter in (mm) | Tool | Tool range in (mm) | Centering device | Required nozzle | Air consumption (cfm) (m³/min) | |
| 8” – 36” | SB-636-A | 8” – 10” (203 – 254 mm) | SPB-19 use 120 mm legs | 2 x ASB-13 2 x ASB-14 2 x ASB-16 | 200 300 450 | 5.7 8.5 12.8 |
| SB-636-A | 10” – 15” (254 – 381 mm) | SPB-19 use 190 mm legs | 2 x ASB-15 | 300 | 8.5 | |
| SB-636-A | 15” – 23” (381 – 584 mm) | SPB-19 use 290 mm legs | 2 x ASB-17 | 450 | 12.8 | |
| SB-636-A | 23” – 36” (584 – 915 mm) | SPB-19 use 460 mm legs | 2 x ASB-17 | 450 | 12.8 | |
SPB Spinnerblast Internal Pipe Blaster
| Part no. | Description |
| 3030000 | SB-636-A Spinnerblast incl. SPB-19 carriage, excl. nozzles |
| 3032000 | SB-636-C Repair kit. Containing ◊-marked items in quantities below. |
SPB Spinnerblast Internal Pipe Blaster parts list
| Item | Part no. | Description | Qty | |
| 01 | 3033000 | Pipe plug 1” (25 mm) | ◊ | 4 |
| 02 | 3035000 | Rotating nozzle head | ◊ | 1 |
| 03 | 3036000 | Brake housing | ||
| 04 | 2107000 | Nozzle TC – 6.0 mm orifice, 49 mm long | ||
| 05 | 2108000 | Nozzle TC – 8.0 mm orifice, 49 mm long | ||
| 06 | 2109000 | Nozzle TC – 8.0 mm orifice, 80 mm long | ||
| 07 | 2110000 | Nozzle TC – 9.5 mm orifice, 49 mm long | ||
| 08 | 2111000 | Nozzle TC – 9.5 mm orifice, 103 mm long | ||
| 09 | 3037000 | Set screw M6 x 8 mm | ||
| 10 | 3038000 | Machine screw 65 mm | ||
| 11 | 3039000 | Locking pin | ◊ | 1 |
| 12 | 3040000 | Brake with lining | ◊ | 1 |
| 13 | 3041000 | Tube | ◊ | 1 |
| 14 | 3043000 | Set screw M5 x 6 mm | ||
| 15 | 3044000 | Double seal light bearing | ◊ | 2 |
| 16 | 3045000 | Main body | ||
| 17 | 3046000 | Tube lock ring | ◊ | 2 |
| 18 | 3047000 | Bearing seal | ◊ | 1 |
| 19 | 3048000 | Leather dust seal | ◊ | 30 |
| 3048100 | Teflon dust seal | |||
| 20 | 3049000 | Washer, Tungsten Carbide | ◊ | 2 |
| 21 | 3050000 | End plate, rear | ||
| 22 | 3051000 | Machine screw 35 mm | ||
| 23 | 3052000 | Locking nut for rear end plate | ||
| 24 | 3053000 | Rubber lined nipple 1¼” (32 mm) | ◊ | 2 |
| 25 | 2163000 | CFT Quick coupling (cast iron) | ||
| All (◊)-marked items are included in Spinnerblast Spare Parts kit (art.nr. 3032000) in quantities shown. | ||||

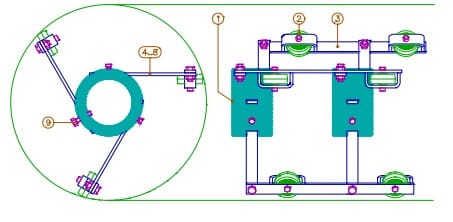

SPB Spinnerblast Carriage parts list
| Item | Part no. | Description |
| 3055000 | Adjustable centering carriage | |
| 01 | 3059000 | Carriage collar |
| 02 | 3056000 | Carriage wheel |
| 03 | 3057000 | Arms with wheels |
| 04 | 3058000 | Set of centering legs |
| 05 | 3060000 | SPB-19/12 Centering leg 12 cm |
| 06 | 3061000 | SPB-19/19 Centering leg 19 cm |
| 07 | 3062000 | SPB-19/29 Centering leg 29 cm |
| 08 | 3063000 | SPB-19/46 Centering leg 46 cm |
| 09 | 3063100 | Collar locking screw |
