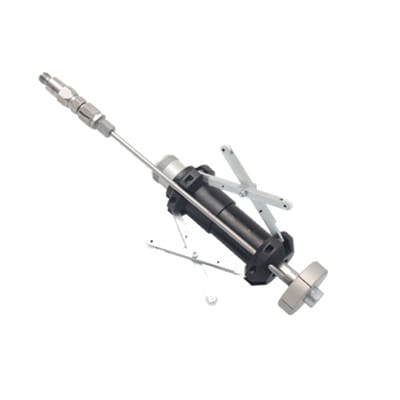

Internal Pipecoater-I
Internal Pipecoater for pipe ID 90 mm to 180 mm (4” – 7”)
PIPECOATER-I tools is designed to coat the inside of pipe or tubing without the need to rotate pipe or tubing and to apply an even paint film thickness throughout. Generally, any type of coating may be used in this tool that can be airless sprayed. To obtain the best possible production, one man should operate the Control Gun while another man pulls the tool through the pipe or tubing.
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
The Airblast Pipecoater provides an innovative and efficient solution for applying paint to the inside of pipe, tubing or other cylindrical structures. With the Pipecoater, you can apply a uniform layer of paint at remarkable speed.
The Pipecoater I tool is available in four packages to suit jobs with differing lengths of pipes: 2, 4, 6 or 12 mtrs. Six sizes of spray tip are available, ranging from .018” to .043’ to suit the specified coating.
PIPECOATER-I is developed for pipe or tubing ranging from 90 mm to 180 mm (4” – 7”) ID. PIPECOATER-I can be connected to a suitable airless paint spray machine of minimum 45:1 ratio.
Advantages
- Efficiently handles wide range of coatings
- Applies uniform layer at remarkable speed
- No need to rotate the pipe or tubing
- Unique gun assembly ensures precise control
- Air-controlled centering carriage legs easily adjust for gradual pipe bends
PIPECOATER-I Internal pipecoater assemblies
| Part no. | Description |
| For pipes with ID of 90 mm to 180 mm (4” – 7”) | |
| 7100100 | Pipecoater-I, for use up to 2 meters (6 ft.) long pipe incl.: 3.0 meters (10 ft.) Air Control Hose 3.5 meters (11 ft.) Paint Spray Hose |
| 7100300 | Pipecoater-I, for use up to 4 meters (12 ft.) long pipe incl.: 5.0 meters (16 ft.) Air Control Hose 5.5 meters (18 ft.) Paint Spray Hose |
| 7100500 | Pipecoater-I, for use up to 6 meters (20 ft.) long pipe incl.: 10.0 meters (32 ft.) Air Control Hose 10.5 meters (34 ft.) Paint Spray Hose |
| 7100700 | Pipecoater-I, for use up to 12 meters (40 ft.) long pipe incl.: 15.0 meters (48 ft.) Air Control Hose 16.0 meters (52 ft.) Paint Spray Hose |
| Delivery includes: ● Paint Spray Tool with Centering Legs ● Air Control Group and Gun ● Air Control Hose ● High Pressure Paint Hose |
PIPECOATER-I Hoses
| Part no. | Description | |
| 7100900 | Air Control Hose, 3.0 meters | (10 ft.) |
| 7101000 | Air Control Hose, 5.0 meters | (16 ft.) |
| 7101100 | Air Control Hose, 10.0 meters | (32 ft.) |
| 7101200 | Paint Spray Hose, 3.5 meters | (11 ft.) |
| 7101300 | Paint Spray Hose, 5.5 meters | (18 ft.) |
| 7101400 | Paint Spray Hose, 10.5 meters | (34 ft.) |
PIPECOATER-I Flow control tips
| Part no. | Description |
| 7101500 | Flow control tip 0.018” orifice |
| 7101600 | Flow control tip 0.021” orifice |
| 7101700 | Flow control tip 0.026” orifice |
| 7101800 | Flow control tip 0.031” orifice |
| 7101900 | Flow control tip 0.036” orifice |
| 7102000 | Flow control tip 0.043” orifice |
PIPECOATER-I Gun assembly
| Part no. | Description |
| 7102100 | Spray gun, incl. hose adaptor assembly |
| 7102200 | Air group for spray gun |
| 7102300 | Adapter for silver gun |
PIPECOATER-I Repair kits & Recommended spare parts
| Part no. | Description |
| 7112900 | Wheel kit, Pipecoater-I includes 7112500, 7112600 and 7112700. (6 pcs. required) |
| 7105000 | O-ring set, Air Control Hose |
| 7105100 | O-ring set, Pipecoater-I |
| 7111400 | Strainer (2 pcs.) |
| 7119500 | Needle bearing |
| 7118400 | Paint tube |
| 7118500 | T-piece |
| Spray tips (sizes to be specified) |
