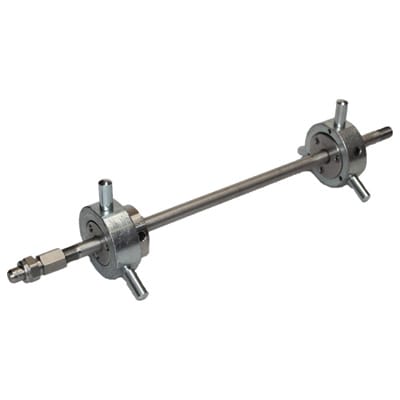

Internal Pipecoater-IV
Internal Pipecoater for pipe ID 25 mm to 300 mm (1” – 12”)
PIPECOATER-IV tool is designed to coat the inside of pipe or tubing ranging from 25 to 300 mm (1” – 12”) ID without the need to rotate pipe or tubing and to apply an even paint film thickness throughout. Generally, any type of coating may be used in this tool that can be airless sprayed.
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Product description
PIPECOATER-IV tool can be connected to a suitable airless paint spray machine of minimum 45:1 ratio. The unit is connected to the end of a pipe lance and connected to the high pressure paint hose coming from the spray pump. Once the PIPECOATER-IV is positioned within the pipe or tubing regulate the paint and air flow to the correct pres- sure. The spray gun is triggered to begin the paint flow. The paint will be sprayed through the round spray nozzle in a 360° spraying pattern.
To stop the PIPECOATER-IV, release the spray gun trigger. For the best possible result, one man should operate the spray gun while another man pulls the tool through the pipe or tubing.
Advantages
- Efficiently handles wide range of coatings
- Applies uniform layer at remarkable speed
- No need to rotate the pipe or tubing

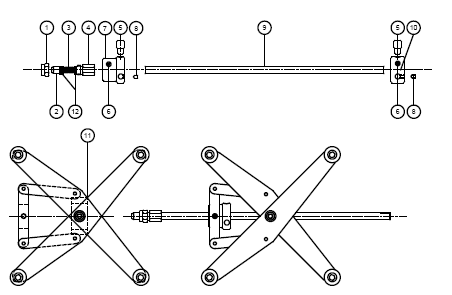

PIPECOATER-IV Internal pipecoater assembly
| Part no. | Description |
| 7304001 | PIPECOATER-IV – bare – including TNSSTC 6 tip (1.07mm) assy and AB-SS 100 filter (parts 1 – 4, 6 – 10 + 12). Optional with centering collars for pipes with ID: 76 – 125mm (3” to 5”) and with 125 – 300mm (5” to 12”). |
PIPECOATER-IV Spare parts
| Item | Part no. | Description | Approx. spray diameter | Approx. spray diameter (mm) |
| 1 | 7304008 | Tip nut SS | ||
| 2 | 7304017 | TNSSTC 0.80 spray tip | 3” | 76mm |
| 7304018 | TNSSTC 0.90 spray tip | 3” | 76mm | |
| 7304019 | TNSSTC 1 spray tip | 3½” | 89mm | |
| 7304020 | TNSSTC 1.5 spray tip | 3½” | 89mm | |
| 7304021 | TNSSTC 2 spray tip | 4½” | 114mm | |
| 7304022 | TNSSTC 3 spray tip | 6” | 152mm | |
| 7304023 | TNSSTC 4 spray tip | 8” | 203mm | |
| 7304024 | TNSSTC 6 spray tip | 10” | 254mm | |
| 7304025 | TNSSTC 8 spray tip | 12” | 305mm | |
| 7304026 | TNSSTC 9 spray tip | 14” | 355mm | |
| 7304027 | TNSSTC 10 spray tip | 16” | 406mm | |
| 7304028 | TNSSTC 12 spray tip | 18” | 457mm | |
| 7304029 | TNSSTC 14 spray tip | 14” | 355mm | |
| 7304030 | TNSSTC 15 spray tip | 16” | 406mm | |
| 7304031 | TNSSTC 16 spray tip | 18” | 457mm | |
| 7304032 | TNSSTC 18 spray tip | 16” | 406mm | |
| 7304033 | TNSSTC 20 spray tip | 18” | 457mm | |
| 7304034 | TNSSTC 22 spray tip | 12” | 305mm | |
| 7304035 | TNSSTC 24 spray tip | 13” | 330mm | |
| 7304036 | TNSSTC 26 spray tip | 14” | 355mm | |
| 3 | 7030414 | Tip filter AB-SS 50 | ||
| 7304015 | Tip filter AB-SS 100 | |||
| 7304009 | Tip filter AB-SS 200 | |||
| 4 | 7304003 | Housing SS | ||
| 5 | 7304005 | Centering device 2” to 5” | ||
| 6-10 | 7304010 | Pipecoater, bare | ||
| 11 | 7304006 | Centering carriage 5” to 12” | ||
| 12 | 7304007 | Nylon washers (set of 2) |
