Miniatura

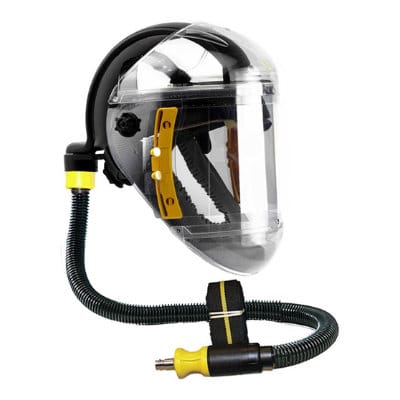

Air Supplied Paintspray Hood
Light duty airhood using totally clear acetate components, providing a perfect vision. The unique visor clamps ensure easy installation of the disposable visors for protection of the main visor against damage and/or splashes. the soft, washable face seal ensures a comfortable protective overpressure around the face. An optional cape can be used to protect the upper and back part of the head and neck against dust and liquid particles. Also available as combi version with an integral safety helmet.
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Features & benefits
- Full face clear visor system allows light in and wide field of vision
- Full face protection including chin and brow guard
- Soft, elastic and washable face seal
- Unique system of spring loaded clamps for disposable visors
MINIATURA Assembly
| Part no. | Description |
| 4038000 | Miniatura air supplied paintspray hood, complete with: – Hood assembly |
MINIATURA Parts List
| Item | Part no. | Description |
| 1 | 4043600 | Disposable outer lens (100 pcs. per set) |
| 2 | 4044900 | Top shield acetate |
| 3 | 4044100 | Inner lens acetate |
| 4 | 4043900 | Bottom shield acetate |
| 5 | 4043800 | Clamp for disposable window (set of 2) |
| 6 | 4044800 | Face collar |
| 7 | 4042000 | Disposable hood |
| 8 | 4044700 | Adjustable headband with air connection |
| 9 | 4044200 | Hose 22 mm with bayonet connection complete with: – airflow regulator |
| 10 | 4044600 | Waist belt |
| 11 | 4044400 | Silencer for airflow regulator |
| 12 | 4019100 | Nipple CEJN with ¼” inner thread |
| 13 | 4044300 | Hose 22 mm with bayonet connection |
| 14 | 4019800 | Self-adhesive sweatband |
Technical Specifications
| Weight | 550 gram |
| Airflow | 130-220 l/min adjustable |
| Hose diameter | 22 mm |
| Standard | EN 1835 |
| Class | LDH2 |
| NPF | 50 |
| Notified body | CE 0121 |
| Applications | Paint spraying, grinding, light chemical handlings |
Materials
| Visor | CA |
| Brow guard | CA |
| Chin guard | CA |
