SSM-200 Soluble salt meter
Soluble Salt Meter
A new inspection tool has been developed to replace the Bresle patch method for soluble salt determination. This Soluble Salt Meter, for which United States Patent No. 8,252,600 was issued on August 28 2012, was designed around the current Bresle patch salt inspection method. The SSM test protocol exactly duplicates the Bresle process, except that measurements are automated and there are no consumables (except distilled water). The complete test sequence requires only one minute. The SSM is approved as an authorized alternative to the Bresle patch method.
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Benefits
- Accurate, easy measurements
- Memory stores up to 1000 measurements for download and analysis
- Repeatable results
- Rugged, industrial hardened measurement device
- Simple operating instructions
- Reduced process steps (17 steps reduced to 6 steps)
- Reduced process time (only one minute reading to reading)
- Eliminate process induced surface contamination (sticky residue)
- Equipment easily transportable (tank inspections)
- Improved safety (syringes/needles eliminated)
- Operator error minimized
- Metered water injection
- Automatic data recording feature (configured to work with coating technical file)
Ordering information
The SSM can be purchased in two versions: the “Lite” version which includes 50 measurements with the possibility to purchase additional measurements as and when required, and the “Unlimited” version which can take unlimited readings. The “Lite” version provides the possibility to reduce the initial purchase price of the SSM and to purchase additional rea- dings for specific projects. The “Lite” version can be upgraded to the “Unlimited” version by purchasing a licence.
| Part no. | Description |

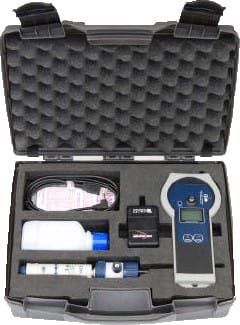

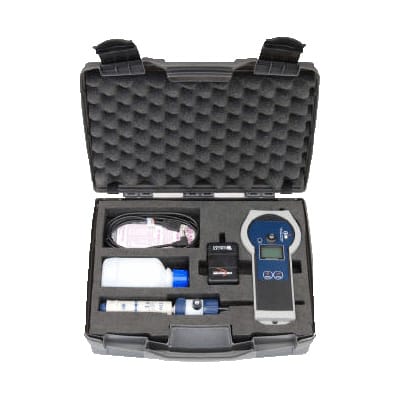

| 7862000 | SSM-200 Soluble Salt Meter Kit (“Unlimited” version), includes: ● Soluble Salt Meter ● SSM adapter flat surface ● Dispenser ● Power supply ● USB cable and PC Software ● Calibration fluid ● Carrying case ● Certificate of performance ● Unlimited credit measurements |
| 7862001 | SSM-200 Soluble Salt Meter Kit (“Lite” version). Same as above only with 50 measurements. |
| 7862004 | Upgrade license from “Lite” version to “Unlimited” version |
| 7862005 | 100 measurements |
| 7862011 | Adapter pipe diameter 65-105cm (26”-42”) |
| 7862012 | Adapter pipe diameter 35-60cm (14”-24”) |
| 7862013 | Adapter pipe diameter 20-30cm (8”-12”) |
| 7862014 | Set of adapters pipe diameter 20-105cm (8”-42”) |
| 7862015 | Performance check for SSM-200 with certificate |
Specifications
| Standards | Equivalent to ISO Standard 8502-9 (Field method for the conductometric determination of water-soluble salts; The Bresle method) in accordance with NACE SP0508-2008 |
| Measurement area | 1250 mm (circular) fixed foot print |
| Attachment method | Magnetic with silicone seal (no effect on surface quality; proven to seal over deep pits) |
| Water injection method | Automated, with simple press of fixed volume dispenser |
| Dose | 3 ± 0.05 ml |
| Measurement process steps | 5 |
| Total process time | 60 seconds (Measurement to Measurement) |
| Measurement range | 0-100 µS/cm |
| Resolution | 1 µS/cm |
| Measurement accuracy | ± 3 µS/cm |
| Surface temperature range | 5-50°C (41-122°F) |
| Temperature probe accuracy | ±0.3°C (± 0.54°F) |
| Diameter of curvature | – Standard measuring head >=44 inch/1100mm – Measuring head 1 26<=>42inch/650<=>1050mm – Measuring head 2 14<=>24inch/350<=>600mm – Measuring head 3 8<=>12inch/200<=>300mm |
| Readout | µS/cm or mg/m² |
| Memory | Holds up to 1000 measurements (10 batches of up to 100 measurements each) |
| Connectivity | Via USB with PC or laptop |
| Power supply | Lithium-ion rechargeable battery |
| IP Rating | IP54 |
| Dimensions (instrument only) | 21x10x8 cm |
| Weight (instrument only) | 780 gr. |
