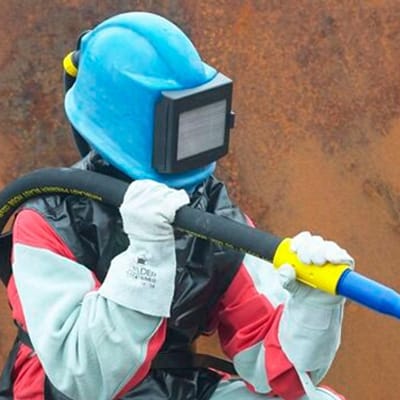

Blast helmet EXTREME
Air Supplied Blast Helmet
Blast helmet made of a lightweight glass fibre reenforced polyester with a blue rubber coating limits the sounds of rebounding blast particles to a minimum. Provides the user with a high protection by a comfortable overpressure. The yellow airflow indicator shows whether sufficient air is being passedinto the shot blasting helmet. The wire mesh
screen and the disposable visor protect the main visor and can be easily exchanged. An exchangeablecotton neck seal ensures comfort and a high protection factor. A cape orjacket, available in leather, bisonyl or cotton, protects the user’s chest, back, and shoulders.
Airblast Poland sp.zo.o.
Gdyńska 60
80-297 Miszewo
Poland
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Features and benefits
- The Extreme has a concentrated field of vision (145x90mm)
- Adjustable headband for increased comfort
- All parts e.g. visors rubber seals are easy to replace
- Unique rubber coating decreases noise level and wear
- Fail safe airflow indicator for increased safety
The Extreme can be perfectly combined with the Vortex Air Conditioner or the leather/cotton overall.
Materials
| Visor | ABS, 145 x 90 mm |
| Helmet | Glassfibre re-enforced polyester, rubber coated |
| Cape | Bisonyl, cotton or leather |
Technical data
| Weight | 2000 gram incl. hose and regulator |
| Airflow | 130-220 l/min adjustable |
| Hose Diameter | 16 mm |
| Standard | EN 271 |
| Protection Factor | 1000 |
| Storage | Cool, dark |
EXTREME Assembly
| Part no. | Description |
| 4050000 | Extreme-I blast helmet, consists of helmet assembly, breathing tube, regulator, sound silencer, cape and cape |
| 4050100 | Extreme-II blast helmet, same as above only with leather cape |
| 4050200 | Extreme-III blast helmet, bare excluding breathing tube, regulator, sound silencer, cape and cape |

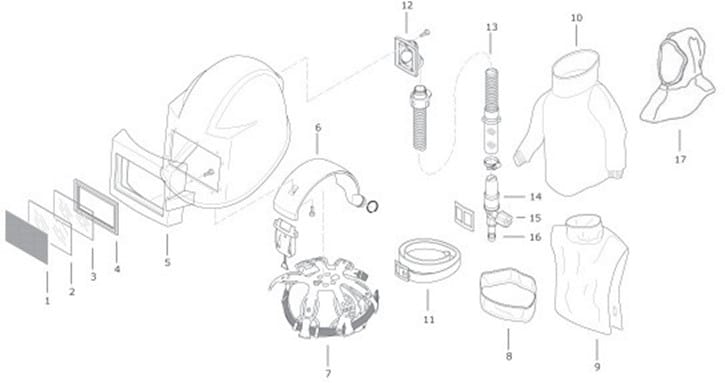

EXTREME Parts List
| Item | Part no. | Description |
| 1 | 4022000 | Wire mesh screen |
| 2 | 4023000 | Glass window |
| 3 | 4024000 | Acrylate window |
| 4 | 4025000 | Rubber window gasket |
| 5 | 4050600 | Window assembly |
| 6 | 4050800 | Air flow indicator |
| 7 | 4028000 | Adjustable headband |
| 8 | 4011000 | Neck bib w/plastic zipper |
| 9 | 4012000 | Cape nylon |
| 4012100 | Cape leather | |
| 10 | 4054000 | Blouse cotton |
| 4054100 | Blouse leather | |
| 11 | 4015000 | Waist belt |
| 12 | 4050900 | Air inlet assembly |
| 13 | 4051000 | Corrugated hose 22mm |
| 14 | 4018000 | Silencer type P |
| 15 | 4019000 | Airflow regulator |
| 16 | 4019100 | Nipple CEJN 1/4” inner thread |
| 17 | 4055300 | Cotton comfort hood |
EXTREME Optional Accessories
| Part no. | Description |
| 4046100 | Vortex Climate Control Tube complete with belt and regulator. Fits directly to breathing tube of the Extreme Blast Helmet to supply a continuous flow of cool or warm compressed air to your blast helmet. |
