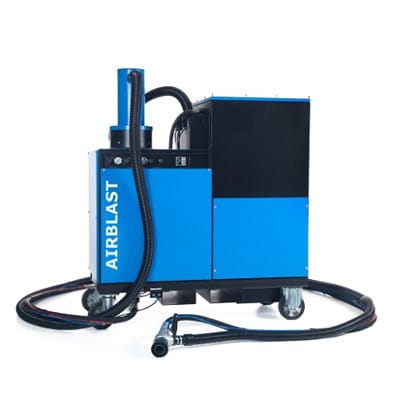

AB-1070 EP/PN Dust free vacuum blast machine
Dust Free Vacuum Blast System
The AB-1070 vacuum blast machine is an environmentally friendly dust free blasting solution which is easy to use, versatile and powerful. The use of steel abrasive provides cost effective, efficient and powerful blasting as well as close control of the surface preparation.
Easily inter-changeable blast head fittings allow a variety of surfaces to be blasted including: flat, inside & outside corners, small & large diameter pipes etc. Additional accessories are available for specific applications such as to blast large horizontal surfaces or the edges of steel plates. As the process is safe and dust free other production processes can be carried out close to the blasting operation.
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Features
- “Stand alone” unit includes automatic dust extraction and abrasive recycling system
- Quickly interchangeable blast head fittings to blast different surface shapes
- Fully pneumatic
- Allows blasting from low to high pressure (1 – 8 bar)
- Maximum hose length of 35 meters
- Can be incorporated into an automatic on-line blasting process
Benefits
- Totally dust free environmentally friendly blasting
- Other job site operations can be conducted close to the blasting area
- Zero dust contamination on the job site
- Many common shapes can be blasted with ease
- Low operation cost due to the use of steel abrasive
- Flexible and versatile
Surfaces
| Surface | Abrasive type | Abrasive size | Obtained surface quality | Average production capacity per hour |
| Steel: millscale, coatings and or corrosion | Alu-oxyde Chilled iron Steel grit | 0.8-1.2 mm. G17 / G24 | SA 2½ (SP10) | 4 – 9 m2 |
| Steel: heavy corrosion | Alu-oxyde Chilled iron Steel grit | 0.8-1.2 mm. G17 / G24 | SA 2½ (SP10) | 3 – 8 m2 |
| Steel: blasted with shot primer | Alu-oxyde Chilled iron Steel grit | 0.8-1.2 mm. G17 / G24 | SA 2½ (SP10) | 5 – 9 m2 |
| Steel: Chlorinated rubber coating | Alu-oxyde Chilled iron Steel grit | 0.8-1.2 mm. G17 / G24 | SA 2½ (SP10) | 1.5 – 5 m2 |
| Weld seams: steel | Alu-oxyde Chilled iron Steel grit | 0.8-1.2 mm. G17 / G24 | SA 2½ (SP10) | 80 – 120 mtr/hr. (50 mm. width) |
*) All mentioned values are averages and may vary due to surface conditions, abrasive quality, machine use and experiences of the operator.
Technical Specifications AB-1070
| Pneumatic Single Chamber | |
| Blast media capacity (ltr.) | 24 |
| Max. hose length (mtr.) | 45-60 |
| Empty weight (kgs.) | 525 |
| Dimensions W x L x H (mm) | 1570 x 750 x 1860 |
| Max. working pressure (bar) | 1.5 – 8.0 |
| Recommended compressor size (ltr/min.) | 3500 – 10000 |
| Average width blast pattern (mm) | 50/75 |
| Max. abrasive size (mm) | 1.5 |
Vacuum blasting machine AB-1070
Delivery includes:
- 15 m hose set consisting of a blast hose, abrasive recovery hose, a double line control hose with trigger and all necessary hose connectors.
- Hardened aluminium blast head, a blast head inner tube flat, a blast head inner tube 90 and a 6,4 mm boron carbide nozzle.
- Set of standard brushes (brush flat, brush 90° inner corner and brush 90° outer corner).
- Adjustable venturi and pressure gauge for air driven version
- Operator’s manual in English
- Warranty
Options and accessoiries
- Extension blast hose set of 10m
- Extension blast hose set of 15m
- Extension blast hose set of 20m
- Large blast head Borium Carbide Nozzle
- Floor trolley for large blast head
