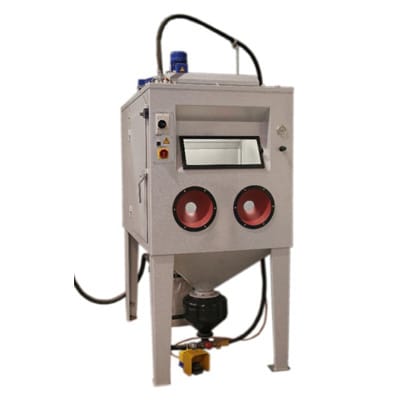

ABD-1000 Pressure sandblasting cabinet
Pressure Blast Cabinet
This Pressure Blast Cabinet is primaraly suitable for delicate or lighter work such as:
- cast and construction operations
- removing of mill scale, rust and coating layers
- dulling of non-ferrous metals
The blast cabinet operates with a compressed air system. The shotblasting vessel is constructed at the shotblasting funnel directly under the working area space and provided with wear resistant parts which require minimum maintenance.
Request a quote
Contact information
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Features
The dust filter installation is constructed behind the working space and features a seperator.
The installation is constructed of 3 mm steelplate and finished with a coating layer in the colour grey. The blasting space is completely covered with 3 mm rubber.
Delivery includes:
- revolving door with safety control switch
- lighting 4×18 Watt
- 3 perforated grids in working area
- 1 window exchangeable
- 1 window securit
- 2 flexible rubber openings
- build-in controlpanel with main switch, control safety switches for exhauster and lighting
- 1 nozzle holder with 6 mm Boron Carbide Nozzle
- blast hose 3/4” which is guided through the roof of the machine
- reducing valve (0 – 10 bar) operated by a pilot valve with manometer on the front of the machine
- electric footpedal to operate the blastvessel
Automatic blasting vessel - dimensions
| Diameter | Ø 350 mm |
| Max. Pressure | 6 bar |
Dimensions
| Cabinet | Working area | Door | |
| Height | 2490 mm | 1000 mm | 850 mm |
| Width | 1050 mm | 1000 mm | 700 mm |
| Depth | 1700 mm | 1000 mm | |
Construction
The blastvessel has a capacity of approximate 17 litres, made from 5 mm steelplate and is provided with an automatic closing dual stage popup valve and grithopper with sieve. Further complete with an electrical 2/2 way inlet valve 1” and abrasive metering valve type “Microvalve”.
Operating principle
The abrasive falls into the hopper via the work grating in the working area of the blast cabinet. From the hopper the abrasive is poured into the blast vessel. By depressing the foot pedal the blast vessel is pressurized and closed by the cone. When the blast vessel is filled and pressurized the abrasive is transported to the working area of the blast cabinet via the abrasive hose. The abrasive hose with abrasive leads to the blast nozzle. The ratio between compressed air and abrasive can be adjusted by using the abrasive metering valve and the air regulator of the compressed air supply.
