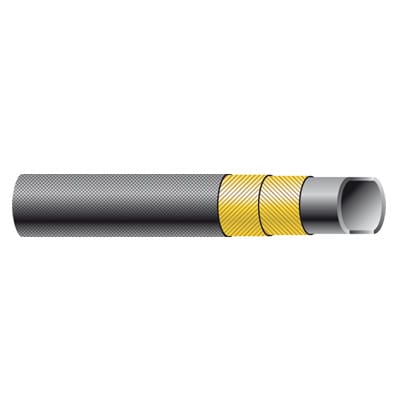

Blast Hose
Heavy Execution / Extra Heavy Execution
The Airblast Blast Hose range comprises of the highest quality hose manufactured in the most popular diameters and available in two executions. All Airblast Blast Hose features an antistatic outer case and a lightweight internal knitted nylon ply – this gives the optimum combination of durability, cost and safety.
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Executions
Heavy execution: Most popular blast hose with excellent tube quality making it suitable for use with all abrasives. Extra heavy execution: Premium quality blast hose especially suitable for use with sharp edged hard abrasives.
Features
- Long service life due to wear resistant inner tube
- Antistatic construction prevents the build-up of static electricity
- SBR cover in black colour with cloth effect finish
Standards: Exceeds EN ISO 3861:2008.
Airblast offers a full selection of blast hoses as well as other hoses used in blast cleaning and paint spraying operation – contact Airblast to discuss which hose is most suitable for your specific application.
Blast Hose - Heavy Execution
| Part no. | Description | ID | OD in mm | Wall width in mm | Weight approx. kg./mtr. | Available lengths in mtr. | |
| mm | inches | ||||||
| 2506000 | Blast Hose 13 x 7 | 13 | ½” | 27 | 7 | 0,50 | 5 / 10 / 20 / 40 |
| 2506100 | Blast Hose 19 x 7 | 19 | ¾” | 33 | 7 | 0,65 | 20 / 40 |
| 2507000 | Blast Hose 25 x 7 | 25 | 1” | 39 | 7 | 0,75 | 20 / 40 |
| 2508000 | Blast Hose 32 x 8 | 32 | 1¼” | 48 | 8 | 1,10 | 20 / 40 |
| 2509000 | Blast Hose 38 x 9 | 38 | 1½” | 56 | 9 | 1,45 | 40 |
| 2510000 | Blast Hose 42 x 9 | 42 | 1¾” | 60 | 9 | 1,65 | 40 |
| 2511000 | Blast Hose 50 x 11 | 50 | 2” | 72 | 11 | 2,20 | 40 |
Blast Hose - Extra Heavy Execution
| Part no. | Description | ID | OD in mm | Wall width in mm | Weight approx. kg./mtr. | Available lengths in mtr. | |
| mm | inches | ||||||
| 2512000 | Blast Hose 13 x 7 | 13 | ½” | 27 | 7 | 0,50 | 5 / 10 / 20 / 40 |
| 2502100 | Blast Hose 19 x 7 | 19 | ¾” | 33 | 7 | 0,65 | 20 / 40 |
| 2513000 | Blast Hose 25 x 7 | 25 | 1” | 39 | 7 | 0,80 | 20 / 40 |
| 2514000 | Blast Hose 32 x 8 | 32 | 1¼” | 48 | 8 | 1,10 | 20 / 40 |
| 2515000 | Blast Hose 38 x 9 | 38 | 1½” | 56 | 9 | 1,50 | 40 |
| 2516000 | Blast Hose 42 x 9 | 42 | 1¾” | 60 | 9 | 1,65 | 40 |
| 2517000 | Blast Hose 50 x 11 | 50 | 2” | 72 | 11 | 2,40 | 40 |
Specifications
| Property | Description |
| Cover | SBR, black, antistatic, cloth impression |
| Reinforcement | Textile wrapped |
| Tube | NR/SBR/BR, black, smooth, antistatic, abrasion resistant |
| Working Pressure | 12 bar |
| Safety Factor | 3.5 : 1 |
| Temperature Range | -35°C to +80°C |
| Wear Factor | Heavy Execution = 50 mm³ (DIN ISO 4649:2006); Extra Heavy Execution = 36 mm³ (DIN ISO 4649:2006) |
