Blasting valve SGV

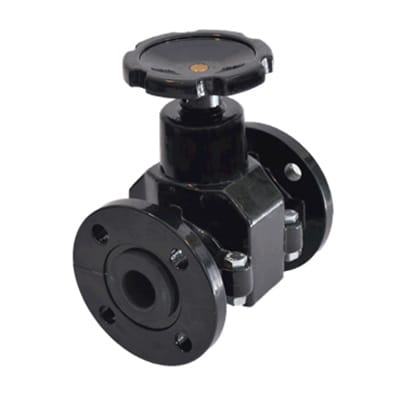

SGV Steel Grit Valve
The Airblast SGV Steel Grit Valve is designed for the precise metering of abrasive into the compressed air flow at the outlet of a blast machine.
Request a quote
Contact information
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Product description
The SGV Steel Grit Valve is suitable for metering heavy or aggressive abrasive materials, such as steel shot and grit, chilled iron grit or aluminium oxide. The SGV Steel Grit Valve design prevents the valve body from coming into contact with the abrasive stream. The abrasive stream only touches the rubber liner, which may be quickly replaced when worn. The abrasive is metered by means of closing the rubber pipe by a adjustment screw.
Airblast offers a full selection of metering valves. Contact Airblast to discuss which metering valve is most suitable for your specific application.

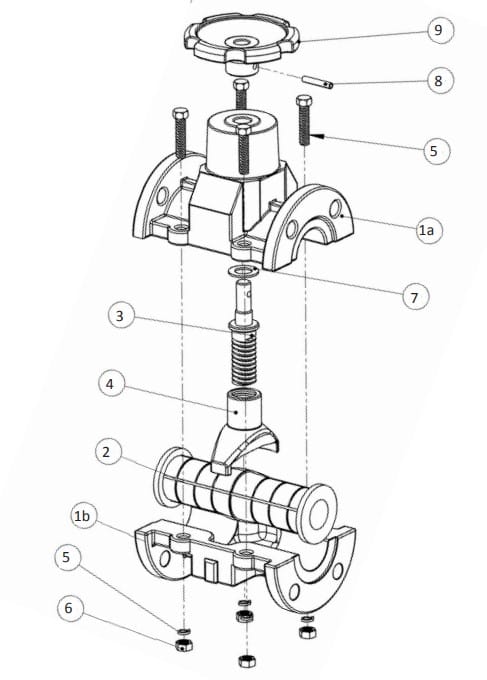

SGV Steel Grit Valve - Parts
| Item | Part no. | Description | Qty |
| 1a | 6062200 | Upper body | 1 |
| 1b | 6062200 | Lower body | 1 |
| 2 | 6062100 | Rubber sleeve 1” ID | 1 |
| 3 | 6062500 | Adjusting screw | 1 |
| 4 | 6062400 | Yoke | 1 |
| 5 | 6062401 | Hex bolt M8x1.25×35 with spring washer | 4 |
| 6 | 6062402 | Hex nut M8x1.25×35 | 4 |
| 7 | 6062600 | Washer | 1 |
| 8 | 6062601 | Roller pin | 1 |
| 9 | 6062700 | Control handle | 1 |

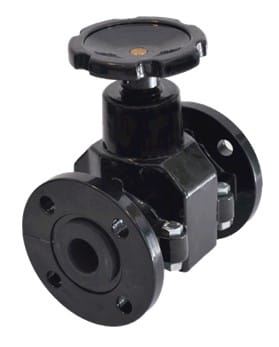

SGV Steel Grit Valve
| Part no. | Description |
| 6062000 | SGV Steel Grit Valve 1” |
