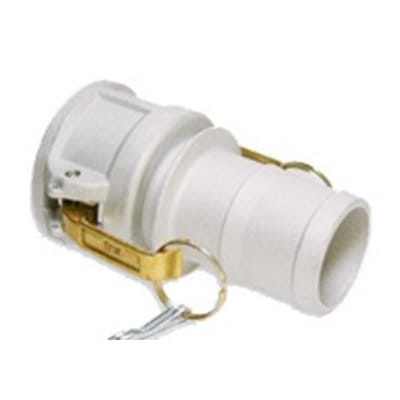

Camlock Aluminium Couplings
Blast hose couplings / fittings
Camlock couplings are well-known as quick hose coupling providing quick connection and disconnection for pumps, tanks, equipment and places where hoses should be changed frequently.
Aluminium cam lock couplings allow you to quickly connect and disconnect your hose in a variety of applications, in- cluding dry product transportation where hoses should be changed frequently. Lightweight and secure, these premium quality aluminium camlock couplers feature brass handles that fold down into position to complete a tight join.
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Product description
Aluminium cam lock couplings can be used with PVC suction hoses, layflat discharge hoses and other low pressure hoses. It highly simplify the operation and cut down working time. However, cam locks are not suitable for any kind of hose. It is forbidden to be used in compressed air or gas or high pressure applications.
Aluminum camlock couplings are available for water, petroleum products, slurry and dry powder for its good chemical and abrasion resistance. It is an economical, lightweight yet strong metal.
Norm: A-A 59326 25.09.98 (former MIL – C 27487).
T6-heat-treatment, in order to increase the mechanical properties.

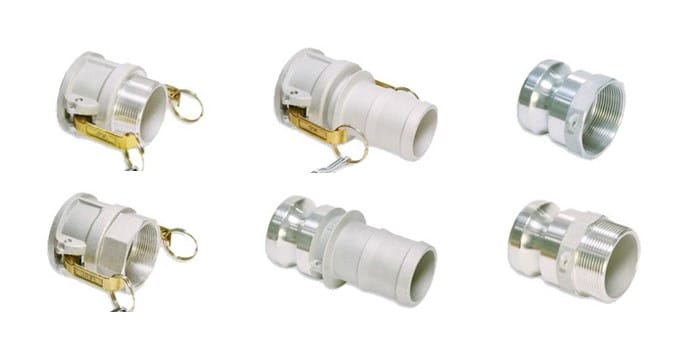

Ordering information
Female coupler with hose tail
| Part no. | Size | Max. WP |
| 2304000 | 2” | 16 bar |
| 2304010 | 2½” | 10 bar |
| 2304011 | 3” | 8 bar |
| 2304012 | 4” | 7 bar |
| 2304012 | 5” | 5 bar |
| 2304013 | 6” | 5 bar |
Female coupler male thread
| Part no. | Size | Max. WP |
| 2304014 | 2” | 16 bar |
| 2304015 | 2½” | 10 bar |
| 2304016 | 3” | 8 bar |
| 2304017 | 4” | 7 bar |
| 2304018 | 5” | 5 bar |
| 2304019 | 6” | 5 bar |
Female coupler female thread
| Part no. | Size | Max. WP |
| 2304020 | 2” | 16 bar |
| 2304021 | 2½” | 10 bar |
| 2304022 | 3” | 8 bar |
| 2304023 | 4” | 7 bar |
| 2304024 | 5” | 5 bar |
| 2304025 | 6” | 5 bar |
Male adapter hose tail
| Part no. | Size | Max. WP |
| 2304026 | 2” | 16 bar |
| 2304027 | 2½” | 10 bar |
| 2304028 | 3” | 8 bar |
| 2304029 | 4” | 7 bar |
| 2304030 | 5” | 5 bar |
| 2304031 | 6” | 5 bar |
Male adapter male thread
| Part no. | Size | Max. WP |
| 2304032 | 2” | 16 bar |
| 2304033 | 2½” | 10 bar |
| 2304034 | 3” | 8 bar |
| 2304035 | 4” | 7 bar |
| 2304036 | 5” | 5 bar |
| 2304037 | 6” | 5 bar |
Male adapter female thread
| Part no. | Size | Max. WP |
| 2304038 | 2” | 16 bar |
| 2304039 | 2½” | 10 bar |
| 2304040 | 3” | 8 bar |
| 2304041 | 4” | 7 bar |
| 2304042 | 5” | 5 bar |
| 2304043 | 6” | 5 bar |
