Elcometer 107 Cross Hatch Cutter
Elcometer 107 Basic Kits & Full Kits Elcometer 99 Adhesive Tape
The Elcometer 107 Cross Hatch Cutter for adhesion tests provides an instant assessment of the quality of the bond to the substrate.
Used as part of the cross hatch adhesion test, the Elcometer 99 Adhesive Tape is used to remove loose particles of paint from a lattice pattern.
Request a quote
Contact information
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Product description
Elcometer 107 Cross Hatch Cutter
Due to its rugged construction this cross hatch cutter is ideal for thin, thick or tough coatings on all surfaces. An ideal field or laboratory test.
> Robust design
> Large, non slip grip
> Ideal for thin, thick or hard coatings
> A quick change, 4 sided cutter allows adhesion testing on a wide range of coating thicknesses (1mm, 1.5mm, 2mm and 3mm)
The Elcometer 107 Cross Hatch Cutter for adhesion testing is available as a Basic or Full Kit.

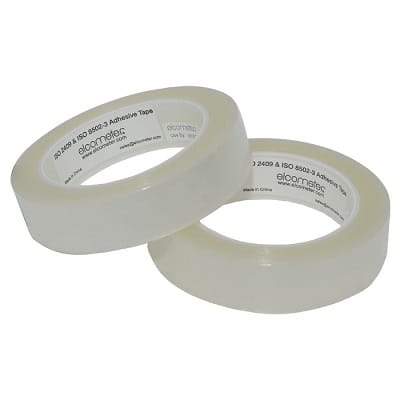

Elcometer 99 Adhesive Tape
Designed to be used after a ross hatch adhesion, the Elcometer 99 Adhesive Tape can be used to remove any loose paint particles from the lattice pattern. This allows the inspector to determine the degree of coating removal to the relevent standard being used (ISO 2409 or ASTM D 3359), in accordance with the chart provided.
Technical Specifications
| Part Nr. | Elcometer 107 Cross Hatch Cutter | Cutter Type | Coating Thickness |
| F10713222-1 | Elcometer 107 Basic Kit | 6 x 1mm | 0 – 60μm / 0 – 2.4mils |
| F10713348-6 | Elcometer 107 Full Kit with ISO Tape | 6 x 1mm | 0 – 60μm / 0 – 2.4mils |
| F10713348-1 | Elcometer 107 Full Kit with ASTM Tape | 6 x 1mm | 0 – 50μm / 0 – 2.0mils |
| F10713222-2 | Elcometer 107 Basic Kit | 11 x 1mm | 0 – 50μm / 0 – 2.0mils |
| F10713348-2 | Elcometer 107 Full Kit with ASTM Tape | 11 x 1mm | 0 – 50μm / 0 – 2.0mils |
| F10713222-3 | Elcometer 107 Basic Kit | 11 x 1.5mm | 0 – 90μm* / 0 – 3.5mils* * approximate thickness |
| F10713222-4 | Elcometer 107 Basic Kit | 6 x 2mm | 50 – 125μm / 2.0 – 5.0mils |
| F10713348-9 | Elcometer 107 Full Kit with ISO Tape | 6 x 2mm | 61 – 120μm / 2.4 – 4.7mils |
| F10713348-4 | Elcometer 107 Full Kit with ASTM Tape | 6 x 2mm | 50 – 125μm / 2.0 – 5.0mils |
| F10713222-5 | Elcometer 107 Basic Kit | 6 x 3mm | 121 – 250μm / 5.0 – 10mils |
| Kit | Content |
| Basic Kit | Robust handle, cutter, hexagonal wrench, presentation storage case and instructions (together with Classification of Adhesion Test Results chart) |
| Full Kit | Robust handle, cutter, hexagonal wrench, instructions (together with Classification of Adhesion Test Results chart), magnifier (x6 magnification), brush and adhesive tape (either ASTM or ISO tape), all in a plastic ABS carry case |
| Part Nr. | Elcometer 99 Adhesion Tape |
| K0001539M001 | Adhesion Tape (1 roll) ASTM D 3359 |
| T9998894- | Adhesion Tape (2 rolls) ASTM D 3359 |
| T9999358-1 | Adhesive Tape (1 roll) ISO 2409 |
| T9999358-2 | Adhesive Tape (2 rolls) ISO 2409 |
