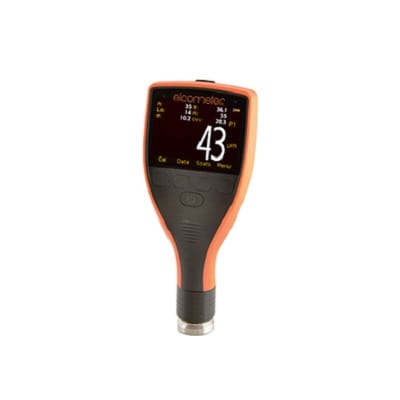

Elcometer 224 Digital Surface Profile Gauge
Integral & Separate Surface Profile Gauge
The Elcometer 224 Digital Surface Profile Gauge provides the very latest in surface profile measuring technology for measuring surface profile on either flat or curved surfaces.
Request a quote
Contact information
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Product description
- Fast and reliable peak-to-valley surface profile measurement
- Accurately measure surface profile on flat or curved surfaces up to 500μm (20mils)
- Measures both average peak-to-valley and average maximum peak-to-valley height
- Portable, rugged hand-held design is ideal for field use
The Elcometer 224 surface profile meter is available in two different models: Model B and Model T. Each surface profile meter provides the user with increasing functionality – from the entry level Elcometer 224 Model B Surface Profile Gauge, to the top of the range Elcometer 224 Model T Surface Profile Gauge, with memory, alpha-numeric batching and Bluetooth® communication.
Standard and armoured probes are available for the separate models, providing even greater measurement flexibility. Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils (nominal values 125µm (5.0mils) & 500µm (20mils)) and an Elcometer Test Certificate.
Technical Specifications
See data sheet for full technical specifications
| Part Nr. | Description | |
| Integral Gauge | Separate Gauge* | * Probes are supplied separately |
| E224C-BI | E224C-BS | Elcometer 224 Model B Digital Surface Profile Gauge |
| E224C-TI | E224C-TS | Elcometer 224 Model T Digital Surface Profile Gauge |
| Measurement Range | 0-500μm (0-20mils) |
| Probe Tip | Tungsten carbide tip 60° angle |
| Tip Radius | 50μm (2mil) |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Storage Temperature | -10 to 60°C (14 to 140°F) |
| Accuracy** | ±5% or ±5μm (±0.2mil) |
| Resolution | 1μm (0.1mil); |
| Packing List | Elcometer 224 Digital Surface Profile Gauge, glass zero tile***, 2 x calibration foils***, wrist harness, plastic transit case (T), protective case, screen protector, probe protection cap***, 2 x AA batteries, test certificate, operating instructions, USB cable (T) & ElcoMaster® software (T) |
| ** Whichever is the greater *** For separate gauges, the test foils, glass zero tile and probe protection cap are supplied with the separate probe. |
