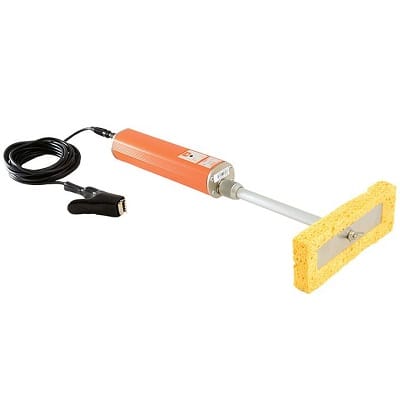

Elcometer 270 Pinhole Detector
D270—-3, D270—-4, D270—-3C, D270—-4C
The Elcometer 270 Pinhole Tester range utilises the wet sponge technique and has been designed to set a new standard for wet sponge pinhole detectors.
Request a quote
Contact information
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Product description
The Elcometer 270 Pinhole Tester is a high quality, low voltage detector and is supplied with similar accessories to a high voltage spark tester.
- Supplied ready to use
- Automatic sensitivity calibration and voltage checks
- Low battery indicator
- Visual and audible alarms
- Integral and separate wand functionality
- A wide range of fully interchangeable wand accessories
- Easy release snag proof cables
- Large standard sponge
- An inspection kit for all your requirements is available.
Technical Specifications
See data sheet for full technical specifications
| Elcometer 270/3 Pinhole Detector | Elcometer 270/4 Pinhole Detector | |
| Part Number | D270—-3 | D270—-4 |
| Part Number with Certificate | D270—-3C | D270—-4C |
| Voltage | 9V and 90V | 9V, 67.5V and 90V |
| Coating Range (Max) | 500µm (20mils) | 500µm (20mils) |
| Sensitivity | 9V: 90kΩ ±5% 90V: 400kΩ ±5% | 9V: 90kΩ ±5% 67.5V: 125kΩ ±5% 90V: 400kΩ ±5% |
| Battery Life (continuous use) | 9V: up to 200 hours 90V: up to 80 hours | 9V: up to 200 hours 67.5V: up to 100 hours 90V: up to 80 hours |
| Battery Type | 3 x AA batteries | |
| Accuracy of Setting | ±5% |
