HAF Helmet air filtration
Helmet Air Filter for 1-6 users

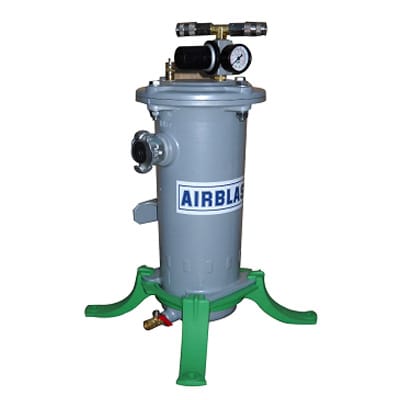

Airblast Helmet Air Filter (HAF) is designed to remove oil mist, water vapour and particulates down to 0.5 micron from breathing grade compressed air. The Airblast Helmet Air Filter meets OSHA regulation 1910.94 (6) (ii), requiring a trap and carbon filter be installed and regularly maintained to remove objectionable odours, as well as water, oil mist and other particulates.
The Airblast HAF is supplied incl. pressure reducing valve to reduce the pressure to the requirements of supplied air respirators, providing that the inlet pressure does not exceed 8,6 bar (125 PSI).
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Operation
The HAF is placed in the breathing-air line between the breathing air source and the respirator supply hose. The HAF is the point of attachment for the respirator hose. Air enters the filter through one of the inlet ports. Moisture is removed by expansion in the outer chamber and is drained through a petcock at the bottom of the unit. The air passes through a replaceable filter cartridge. The outlet pressure is controlled by a regulator on the cap and is measured by a gauge downstream from the cartridge.
Advantages
- One filter suitable for multiple respirators, up to 6 users
- Polypropylene filter cartridge casing eliminates corrosion hazard
- Filter cartridge lasts up to 3 months (based on 40 hours week)
- Filters can be floor or wall mounted

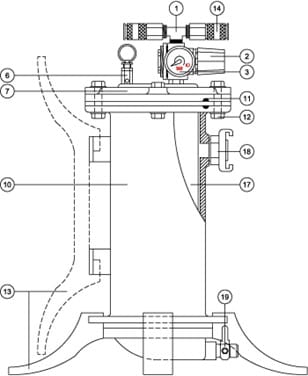

HAF assembly
| Part no. | Description |
| 4300000 | HAF-I Helmet Air Filter for 1-2 users |
| 4320000 | HAF-II Helmet Air Filter for 1-6 users |

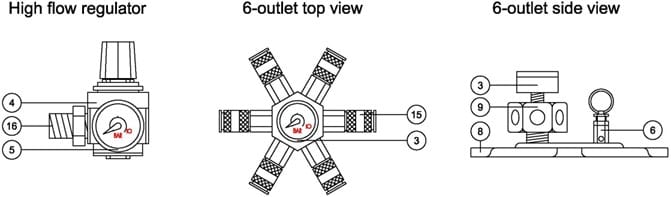

HAF Parts List
| Item | Part no. | Description |
| 01 | 4301000 | 3/8” Tee – brass |
| 02 | 4302000 | 3/8” Pressure regulator |
| 03 | 4303000 | Pressure gauge |
| 04 | 4304000 | 3/8” Pressure regulator – high flow (optional) |
| 05 | 4305000 | Pressure gauge – high flow (optional) |
| 06 | 4306000 | Pressure relief valve |
| 07 | 4307000 | Filter cover for 1 or 2 users HAF |
| 08 | 4308000 | Filter cover for 1-6 users HAF (optional) |
| 09 | 4309000 | Outlet manifold for 1-6 users (optional) |
| 10 | 4310000 | Filter housing |
| 11 | 4311000 | O-ring (set of 2) |
| 12 | 4312000 | Bolt (set of 4) |
| 13 | 4313000 | Base / Wall mount |
| 14 | 2175200 | CCC-38/I Quick coupling 1 or 2 users |
| 15 | 2174200 | CCC-38/O Quick coupling for 1-6 users |
| 16 | 2225500 | Hex nipple 1” |
| 17 | 4250401 | Filter cartridge for HAF |
| 18 | 2170400 | KAG-10 Quick coupling 1” outer thread |
| 19 | 4316000 | Drain valve – brass |
Delivery includes
- HAF Assembly
- Pressure regulator
- Pressure relief valve
- Bracket for stand or wall mount
- Drain valve
- Filter cartridge
Helmet Air Hose - Optional
| Part no. | Description |
| 2527000 | Helmet Air Hose 3/8” – 9 mm ID (9 x 16), 10 bar working pressure |
| 2527400 | Helmet Air Hose 3/8” – 9 mm ID (9 x 16), 10 bar working pressure, coupled 5 meters |
| 2527500 | Helmet Air Hose 3/8” – 9 mm ID (9 x 16), 10 bar working pressure, coupled 20 meters |
| 2527700 | Helmet Air Hose 3/8” – 9 mm ID (9 x 16), 10 bar working pressure, coupled 40 meters |
