Shot blasting machines

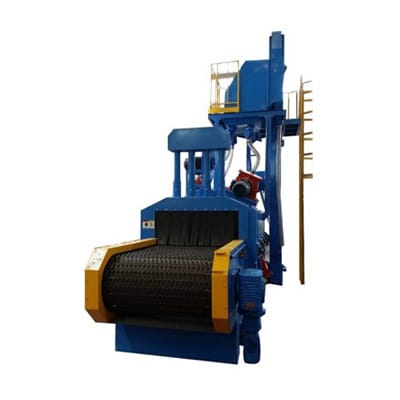

The MB-Line Mesh Belt shot blast machines provide a frequency controlled speed variable mesh belt surface on which a variety of parts can be uniformly blasted. The high quality mesh belt ensures that the work piece remains in the perfect position to be blasted. As each part is blasted in a controlled fashion this technology is perfect for thin-walled parts which could be damaged when impacting other parts (for example inside a tumble blasting machine). Capable of fully automatic operation the MB-Line machines are the perfect shot blasters to improve the quality and consistency of your castings, forgings, or other small parts.
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
Type | MB1000/4 | MB1000/8 | MB1250/4 | MB1250/8 |
Net width | 1000 mm | 1000 mm | 1250 mm | 1250 mm |
Max. load capacity | 1200 kgs | 1200 kgs | 1200 kgs | 1200 kgs |
Max. workpiece weight | 100 kgs | 100 kgs | 100 kgs | 100 kgs |
Max. workpiece section size | 1500 x 500 mm | 1500 x 500 mm | 1500 x 500 mm | 1500 x 500 mm |
No. of blasting wheels | 4 | 8 | 4 | 8 |
Dust air volume | 15000 m³/hr | 15000 m³/hr | 15000 m³/hr | 15000 m³/hr |
The total power | 97.5 KW | 97.5 KW | 97.5 KW | 97.5 KW |
