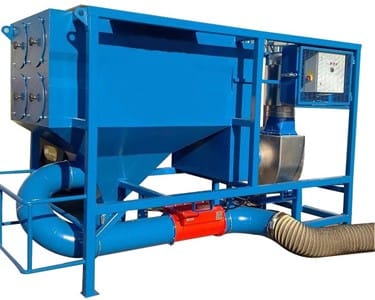

Mobile dust collector ATEX
DC-12/ATEX
Mobile “explosion proof” cartridge dust-filteruint suitable for dust-extraction during metallization with 85/15 zink/ aluminium wire or 100% zink made of steel sheet 3 mm reinforced with steel profiles.
Request a quote
Contact information
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Consisting of
- Complete ATEX Explosion proof cartridge dust-filter suitable for dust-extraction during metallization with 85/15 zink/aluminium wire and blasting. Max. KST 250 bar m/s.
- Explosion panel positioned on top of the filter unit.
- Directly driven ventilator suitable for zone 21.
- Ventilator is provided with an encasing for noise reduction, noise level approx. 72 dbA.
- Ducting including back pressure valve and special pre-separator.
- Air exhaust is including silencer.
- The complete installation is grounded, ground terminal will be provided by the customer; connection close to the filter unit.
Specifications
| Exhaust capacity (m³/hr) | 6000 |
| Max. KST-value (bar – m/s) | 250 |
| Total pressure (Pa) | 3200 |
| Electric motor (kW) (Volt (Hz)) | 7.5, 400/690, 50 |
| Fan | EX II 3D T 80 ºC – directly driven |
| Filter cartridges (pcs.) | 12 |
| Filter area (m²) | 187.2 |
| Filter material | Anti static |
| Filter category | BIA category M |
| Filter percentage (%) | 99.9 |
| Max. dust emission (mg/nm³) | < 0.2 |
| Cleaning | Automatic pressure air; max. 6 bar |
| Hose connection (Ø mm) | 300 |
| Cleaning pressure (bar) | ± 5 |
| Sequence | Adjustable |
| Filter percentage (%) | 99.9 |
| Pneumatic connection | ½” |
| Dust collecting (drum in ltr.) | 50 |
| Weight (kgs) | ± 1150 |
| Dimensions: Total length (mm) | 4410, |
