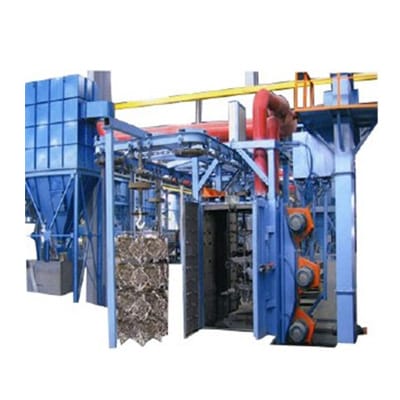

MR-Line – Multiple Rotating
Shot blasting machines
The MR58 featurs hanging chain type continuous duty overhead rail shot blasting machines used for batch cleaning of small to medium sized castings, forged parts and alloys.
Request a quote
Contact information
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Ordering information
| Type | MR583 | MR585 | MR5810 | MR588 |
| Cleaning workpiece size (diameter in mm) | 800 x 1500 | 800 x 1200 | 1300 x 2800 | 550 x 2200 |
| Number of workpiece position | 2 | 3 | 2 | 2 |
| Quantity of impeller head | 4 | 6 | 6 | 4 |
| Impeller head volume (kg/min) | 4 x 250 | 6 x 360 | 6 x 330 | 4 x 480 |
| Impeller head power (kw) | 4 x 15 | 6 x 22 | 6 x 22 | 4 x 22 |
| Max. hanging weight (kg) | 300 | 500 | 1000 | 800 |
| Productivity hanger (/h) | 40 | 55 | 50 | 30 |
| Cleaning workpiece size (mm) | 3062 x 1800 x 2800 | 8500 x 1800 x 3885 | 8500 x 2300 x 4800 | 6800 x 2600 x 3325 |
| Total Air rate volume (m³/h) | 16000 | 18000 | 18000 | 17200 |
| Power (except for dust cleaning) (kw) | 74.5 | 186.85 | 186.85 | 121.05 |
