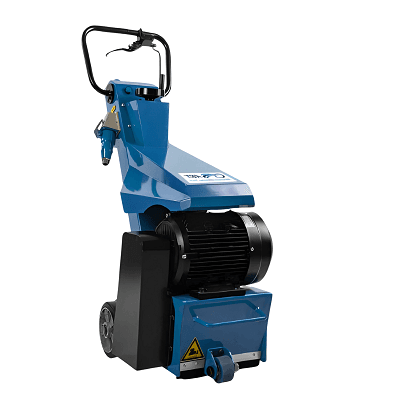

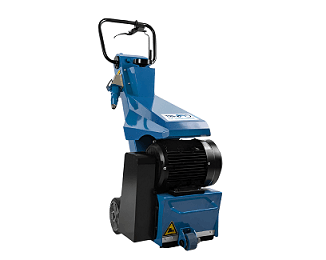

Scarifiers
ABT-S200, S200E, S250, S250E, S280, S280E
A range of scarifiers to remove concrete to level floors and to remove thick coatings.
Request a quote
Contact information
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Features
- Remove up to 15 mm of concrete in a single pass
- Height adjustable for ease of use
- Gas or electric power depending upon your site requirements
- Heavy duty components for long life
- Manually operated and self-propelled units for smaller or larger projects
- Dust collector features double container design for large capacity & effective filtering
- Supplied complete and ready to use
Ordering information
| Part no. | Description |
| 8507916 | ABT-S200 SCARIFIER ( HONDA PETROL 5.5HP) |
| 8507917 | ABT-S200E SCARIFIER (380V/3 PHASE) |
| 8507918 | ABT-S250 SCARIFIER ( HONDA PETROL 13HP) |
| 8507919 | ABT-S250E SCARIFIER (380V/3 PHASE) |
| 8507920 | ABT-S280 SCARIFIER ( HONDA PETROL 25HP) |
| 8507921 | ABT-S280E SCARIFIER (380V/3 PHASE) |
| 8507922 | ABT-JV014 VACUUM MACHINE (220V) |
Specifications
For all specifications, see the data sheet (download)
| Scarifier | ABT-S200 | ABT-S200E | ABT-S250 | ABT-S250E |
| Motor | Honda Gasoline 5.5HP | Siemens Electric 4kW 380V, 3 phase | Honda Gasoline 13HP | Siemens Electric 5.5kW 380V, 3 phase |
| Quantity of blades | 90 | 90 | 90 | 90 |
| Max working depth | Up to 5 mm per pass | Up to 5 mm per pass | Up to 8 mm per pass | Up to 8 mm per pass |
| Working width | 185 mm | 185 mm | 225 mm | 225 mm |
| Production capacity | 25-50 m3/h | 25-50 m3/h | 40-70 m3/h | 40-70 m3/h |
| Weight | 105 kg | 113 kg | 178 kg | 201 kg |
| Movement | Manual | Manual | Manual | Manual |
| Scarifier | ABT-S280 | ABT-S280E | ||
| Motor | Honda/Kohler Gasoline 25HP | Siemens Electric 11kW 380V, 3 phase | ||
| Quantity of blades | 110 | 110 | ||
| Max working depth | Up to 15 mm per pass | Up to 15 mm per pass | ||
| Working width | 265 mm | 265 mm | ||
| Production capacity | 40-70 m3/h | 40-70 m3/h | ||
| Weight | 339 kg | 306 kg | ||
| Movement | Self-propelled | Self-propelled | ||
| Dust collector | ABT-JV014 | |||
| Voltage | 220 V | |||
| Power | 3.6kW | |||
| Vacuum | 27 kPa | |||
| Airflow | 540 m3/h | |||
| Filter area | 30000 cm2 | |||
| Weight | 85 kg |
