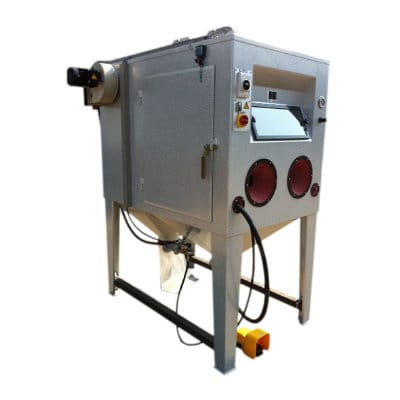

ABDI-1500 Vacuum injection sandblasting cabinet
Vacuum Injection Blast Cabinet
Injection/vacuum system, for rustremoval, cleaning, slagging, frosting, chipping and polishing. The unit is especially designed for manual shotblasting of all sorts of smaller items.
The cabinet consists of a working chamber with underneath a blast medium funnel. A dust filter with pre-separator is part of the cabinet. The working chamber is covered with 3 mm rubber on the walls and the door. Attached to the blast cabin, is a pre-separator to separate the heavy parts from the air flow before the air flow enters the dust filter. Underneath the funnel, the injector is attached.
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Product description
- revolving door with safety control switch.
- lighting 4×18 Watt.
- 3 perforated grids in working area.
- 1 window exchangeable.
- 1 window securit.
- 2 flexible rubber openings.
- build-in control panel with main switch, control safety switches for exhauster and lighting.
- 1 nozzle holder with 8 mm Borium Carbid nozzle.
- blast hose which is guided through the roof of the machine.
- reducing valve (0 – 10 bar) operated by a pilot valve with manometer on the front of the machine.
- pneumatic footpedal.
Dimensions
| Cabinet | Working area | Door | |
| Height | 2790 mm | 1000 mm | 850 mm |
| Width | 1560 mm | 1500 mm | 700 mm |
| Depth | 1700 mm | 1000 mm |
Operating principle
The abrasive falls into the hopper via the work grating in the working area of the blast cabinet. At the lower end of the hopper, the abrasive falls into the mixing tube, from where it is sucked up through the abrasive hose. The suction force can be adjusted by means of the regulating slide valve. The abrasive hose with abrasive leads to the blast nozzle. A compressed air hose is also connected to the nozzle. The foot pedal is used to apply pressure to the compressed air hose. This creates a vacuum in the abrasive hose, causing the abrasive to be drawn in from the hopper and creating a flow of abrasive. The blasting pressure can be adjusted by means of the pressure reducing valve of the compressed air supply.
Technical specification
Cartridge dustfilter Type PF 2 (build-in type with exhauster on the roof)
| Property | Description |
| Exhaust Capacity | 960 m³/h |
| Motor Output | 0.75 kW |
| Electric Motor | 230/400 V, 3 Phase, 50 Hz |
| Filter Cartridges | 2 pieces |
| Filter Area | 20 m² |
| Filter Material | Polyester fabric |
| Filter Efficiency | 99.9% |
| Max. Dust Emission | > 3 mg/nm³ |
| Dust Collecting Bags | 1 piece |
| Cleaning Method | Continuous by compressed air → max. 5 bar |
| Pulse Time | Adjustable |
