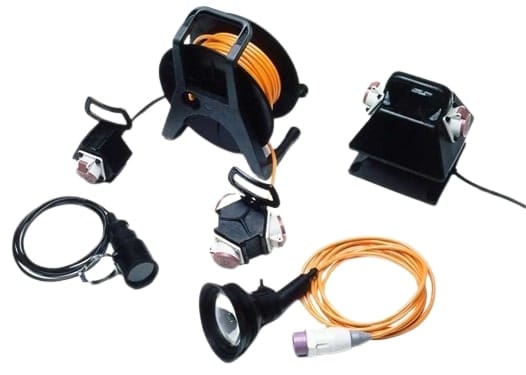

Blast lights
12V/24V
Airblast Blast Lights are developed to meet the demand for an easy to use, lightweight, low voltage grit blasting light.
Request a quote
Contact information
Kelvinstraat 8
1704 RS Heerhugowaard
The Netherlands
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
- More than 50 years of experience
- Airblast offices in 12 countries
Features
- Highly concentrated output of light, the unit fully illuminates the area on which blasting is taking
- ABKR also available with LED bulb 4 Watt, 230
- Safe to use – works off 12 volts and there’s no glass to A cheap, strong and easily replaceable plastic lens is used at the front of the unit.
- No light spill or dazzle – by using a special bulb and tube fitting, the light is concentrated only on the work area and all back dazzle is eliminated.
- Free to work – because the unit is clamped directly on the blast nozzle fitting, the operator has both hands free to operate the blast equipment.
- The blast light can be used alongside all existing deadman
To back up the light, a suitable fully rubber housed transformer is available to connect to a 220 volt 50 Hz line, giving a 12 volt output to upto 4 separate sockets for up to 4 lights. Other executions are available on request.
Blast light ABKR
| Part no. | Description |
| 5010800 | ABKR-12/20 Blast Light 12 Volt/20 Watt incl. 12 Volt halo bulb, 5 m cable (2 x 0.75 mm²) and CEE-Connector (Male). |
| 5010100 | ABKR-24/20 Blast Light 24 Volt/20 Watt incl. 24 Volt halo bulb, 5 m cable (2 x 0.75 mm²) and CEE-Connector (Male). |
| 5016000 | ABKR-12/4 Blast Light 12 Volt/4 Watt incl. 12 Volt LED bulb, 5 m cable (2 x 0.75 mm²) and CEE-Connector (Male). |
Spare parts for ABKR-12/2 and ABKR-24/20
| Item | Part no. | Description | Item | Part no. | Description | |
| 1 | 5010700 | Halogen bulb 12 Volt / 20 Watt | 5012000 | Cable (2 x 1.50 mm²), neoprene, NWPK H07RN-F | ||
| 5010200 | Halogen bulb 24 Volt / 20 Watt | 5 | 5012100 | Fitting | ||
| 5016500 | LED bulb 12 Volt / 4 Watt | 6 | 5012200 | Spring clip | ||
| 2 | 5010300 | Lens | 7 | 5012300 | Cable connector | |
| 3 | 5010400 | CEE Connector, 2 poles, 16A (Male) | 8 | 5012400 | Rubber plug | |
| 4 | 5009500 | Cable (2 x 0.75 mm²), black rubber, RWPK H05RN-F | 9 | 5012500 | Clamp | |
| 5010500 | Cable (2 x 1.50 mm²), black rubber, RWPK H05RN-F | 10 | 5012600 | Bolt (not shown) |
Blast light HALO
| Part no. | Description |
| 5011000 | HALO-24/100 BLAST LIGHT 24 Volt / 100 Watt with ON/OFF-Switch, Full Rubber housing with reflector. Incl. halogen bulb, 5 m cable (2 x 1.5 mm²) and CEE Connector (M) * Also available in 12 Volt and 42 Volt execution. |
| 5020000 | HALO-24/100 BLAST LIGHT 24 Volt / 100 Watt. Full Rubber housing with reflector. Incl. halogen bulb, 5 m cable (2 x 1.5 mm²) and CEE Connector (M). |
Spare parts for HALO-24/100
| Item | Part no. | Description | Item | Part no. | Description | |
| 1 | 5011100 | Bulb 24 Volt / 100 Watt | 3 | 5012000 | Cable (2 x 1.50 mm²), neoprene, NWPK H07RN-F | |
| 2 | 5010400 | CEE Connector 24V / 16A (M) | 5013000 | Cable (2 x 2.50 mm²), neoprene, NWPK H07RN-F | ||
| 4 | 5012700 | Rubber plug |
Transformers for 24V blast and flood lights
Incl. 3 m (2 x 1.5 mm2) Grounded cable and 24 Volt 16A CEE Output (Female) – Full rubber housing. Thermal Safeguard against overload.
| Part no. | Description |
| 5011500 | TRANS MINI – 220V / 24V 120VA – 1 x 24 Volt / 16A CEE output (F) |
| 5011600 | TRANS-MIDI – 220V / 24V 225VA – 2 x 24 Volt / 16A CEE-output (F) |
| 5030100 | TRANS I/1 – 220V / 24V 500VA – 1 x 24 Volt / 16A CEE output (F) |
| 5030200 | TRANS I/2 – 220V / 24V 500VA – 2 x 24 Volt / 16A CEE output (F) |
| 5030300 | TRANS I/3 – 220V / 24V 500VA – 3 x 24 Volt / 16A CEE output (F) |
| 5030400 | TRANS I/4 – 220V / 24V 500VA – 4 x 24 Volt / 16A CEE output (F) |
| 5030500 | TRANS II/2 – 220V / 24V 1000VA – 2 x 24 Volt / 16A CEE output (F) |
| 5030600 | TRANS II/3 – 220V / 24V 1000VA – 3 x 24 Volt / 16A CEE output (F) |
| 5030700 | TRANS II/4 – 220V / 24V 1000VA – 4 x 24 Volt / 16A CEE output (F) |
